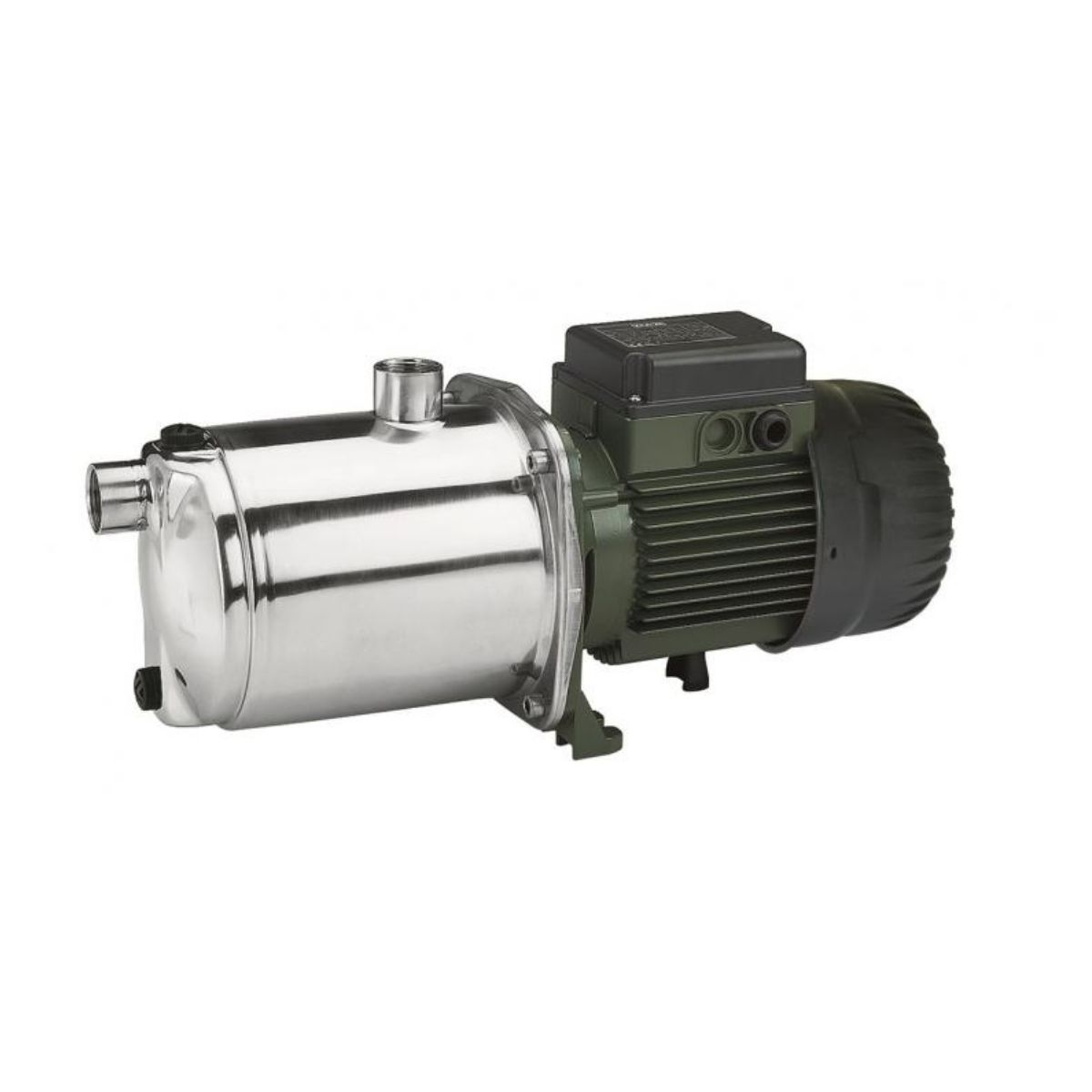

DAB Euroinox Pump

DAB EUROINOX Multistage horizontal centrifugal pump, featuring extremely silent running suitable for domestic use for water supply and pressurisation, irrigation of gardens and vegetable gardens, and moving water in general.

Features:

• Euroinox: stainless steel pump body.
• Motor support in die-cast aluminium, seal holder in
• AISI 304 steel. Mechanical seal in carbon/ceramic.
• Rotor shaft in AISI 304 steel. Rotors, diffuser bodies and diffusers in technopolymer.
• Adjustment rings in stainless steel.
• Operating Range: From 1 to 32gpm (0.6 to 7.2 m3/h) with a head up to 236ft ( 72 m) 102 psi
• Liquid quality requirements: clean, free from solids or abrasive substances, non-viscous, non-aggressive, non-crystallized, chemically neutral, close to the characteristics of water
• Liquid temperature Range: from 32°F to +95°F (0°C to +35°C ) for domestic use / from 32 F to +104 F (0°C to +40°C ) for other uses
• Maximum Suction depth: 26 ft (8 m)
• Maximum ambient temp: 104°F (+40°C )
• Maximum operating pressure: 116 psi (8 bar)
• Installation: fixed or portable in a horizontal position
• Special version: on request other voltages and/or frequencies
• Power Supply:  115v / 230v 60Hz Dual Voltage
• Multistage centrifugal electric pump
• Pump body in stainless steel
• Self-priming up to 6 mm
• Built-in capacitor and single-phase version complete with thermal and current overload protection

Advantages:

• The special design make these pumps exceptionally silent-running.
• High pressures of up to 8 bar can be reached.
• Optimal motor cooling

Benefits:

• Silent running
• Reliable
• Optimal hydraulic performance

Applications include:

• Domestic Water pressurization
• Water pressurization for irrigation systems
• Pressurization of sprinklers & sprinkler systems
