Nova UP 600MNA & Diver 6 800M-A 115V/60Hz

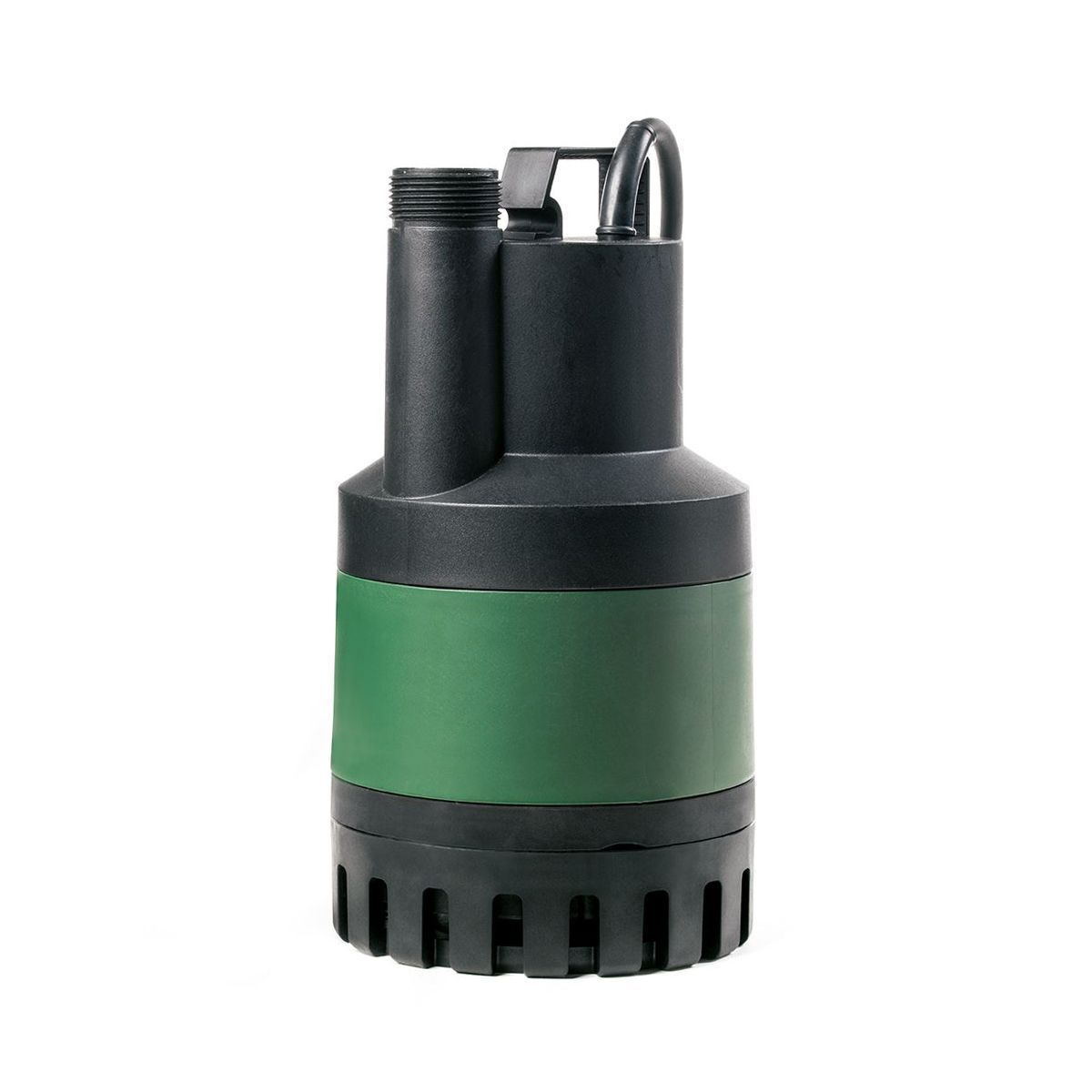

Nova UP 600MNA - 115V/60HZ US PLUG

Vertical flow drainage pump in an manual version, with removable filter for suction up to 2/3 mm, features that make it a strong pump and guarantee installation versatility. These pumps can be used with liquids that contain solids of a maximum size up to 10 mm. Pump body, impeller, cap and grille in techno polymer. The motor, rotor shaft and screws are in stainless steel. Triple O-ring seal with interposed oil chamber. Asynchronous submersible motor for continuous operation. Stator in a sealed stainless-steel enclosure. Rotor mounted on ball bearings greased for life and oversized. Thermal-amperemeters protection incorporated and condenser permanently connected.

Operating range: from 1 to 15 m3/h with head up to 10 metres.

Pumped liquid: dirty water without fibres.

Liquid temperature range: from 0 °C to +35 °C for domestic use.

Outlet: vertical 1” ¼ F.

Diver 6 800M-A 115V/60

DAB 6” multi-impeller submersible pump for clean water, designed for pressurization, rainwater re-use, gardening and irrigation in residential building service.

The pump is ideal for use in rainwater recovery systems and to increase the water pressure.

Available as an automatic model with a float switch for protection against dry running with the need for a control panel. The pump has an in-built starting capacitor and the motor has integrated overheating protection.
