Esybox Mini3 & NPT Electronic Pressurisation System

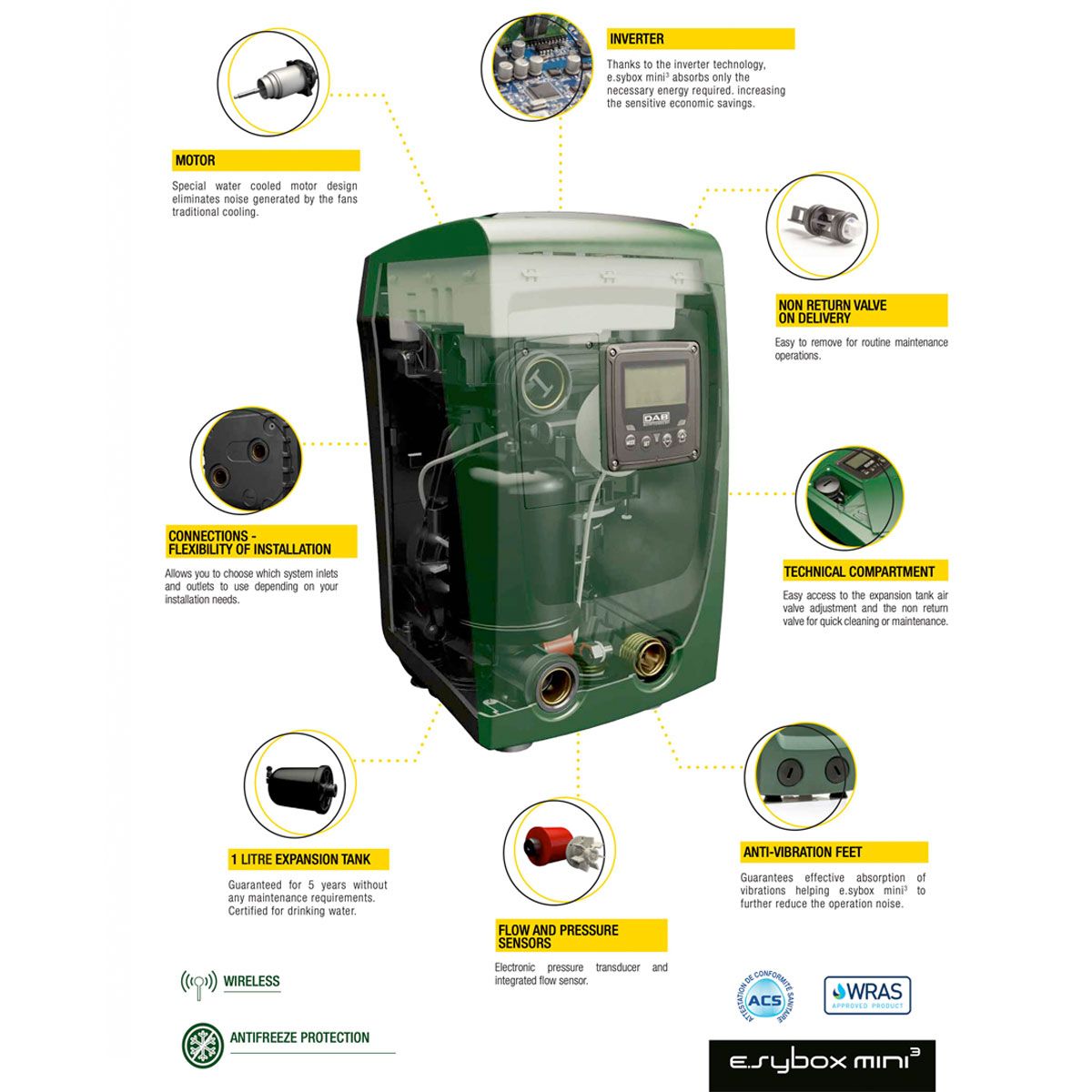

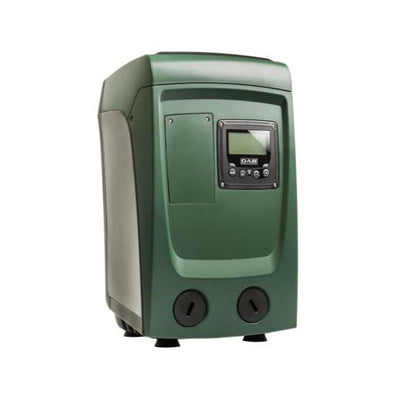

Esybox mini 3:

Revolutionary, integrated Esybox mini 3 provides a new installation experience and maximum comfort during use. Esybox mini 3 benefits from the most advanced DAB technologies to ensure a consistent pressure based on actual needs, and therefore an optimization of energy consumption. Esybox mini 3 has a different appearance than any other booster set and is small and completely integrated.Once you install and use it, you realize that the real difference is in the comfort and performance.

Esybox mini 3 uses the most advanced DAB technologies to create constant pressure according to the system demands and thus an optimization of energy consumption. The new 3-rotor model ensures further noise reduction and energy consumption. Managing the water pressure in your home has never been so simple and quiet. Esybox mini 3 is the DAB compact automatic booster system for the water supply of a single dwelling. Esybox mini 3 guarantees the comfort of constant pressure (Pressure Set Point adjustable from 15 up to 79 psi) inside the system. Suitable for use with drinking water, in domestic systems, and in gardening applications. Esybox mini 3 does not require any additional components for its installation.

Specifications

• Operating range: Capacity up to 22 gpm (80L/min); head up to 183 ft (56 m) - (80 psi)
• Liquid quality requirements: Clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallised and chemically neutral
• Liquid temperature range: From 32°F to +95°F (0°C to +35°C) for domestic use - For other use: from 32°F to +104°F (0°C to +40°C)
• Maximum suction depth: 26 ft (8 m)
• Maximum ambient temperature: +122°F (+50°C)
• Maximum pressure: 108 psi (7.5 Bar)
• Maximum settable pressure: 79 psi (5.5 Bar)
• Motor protection rating: IPX4
• Insulation class: F
• Installation: Horizontal or vertical fixed position
• Approvals: CSA certification to CSA Standard C22.2 No 108- 14 Liquid Pumps - UL Standard 778- 5th Edition- Motor operated water pumps - NSF/ANSI 61 - 2014a - Drinking Water System Components – Health Effects - NSF/ANSI 372 - 2011 - Drinking Water System Components – Lead Content

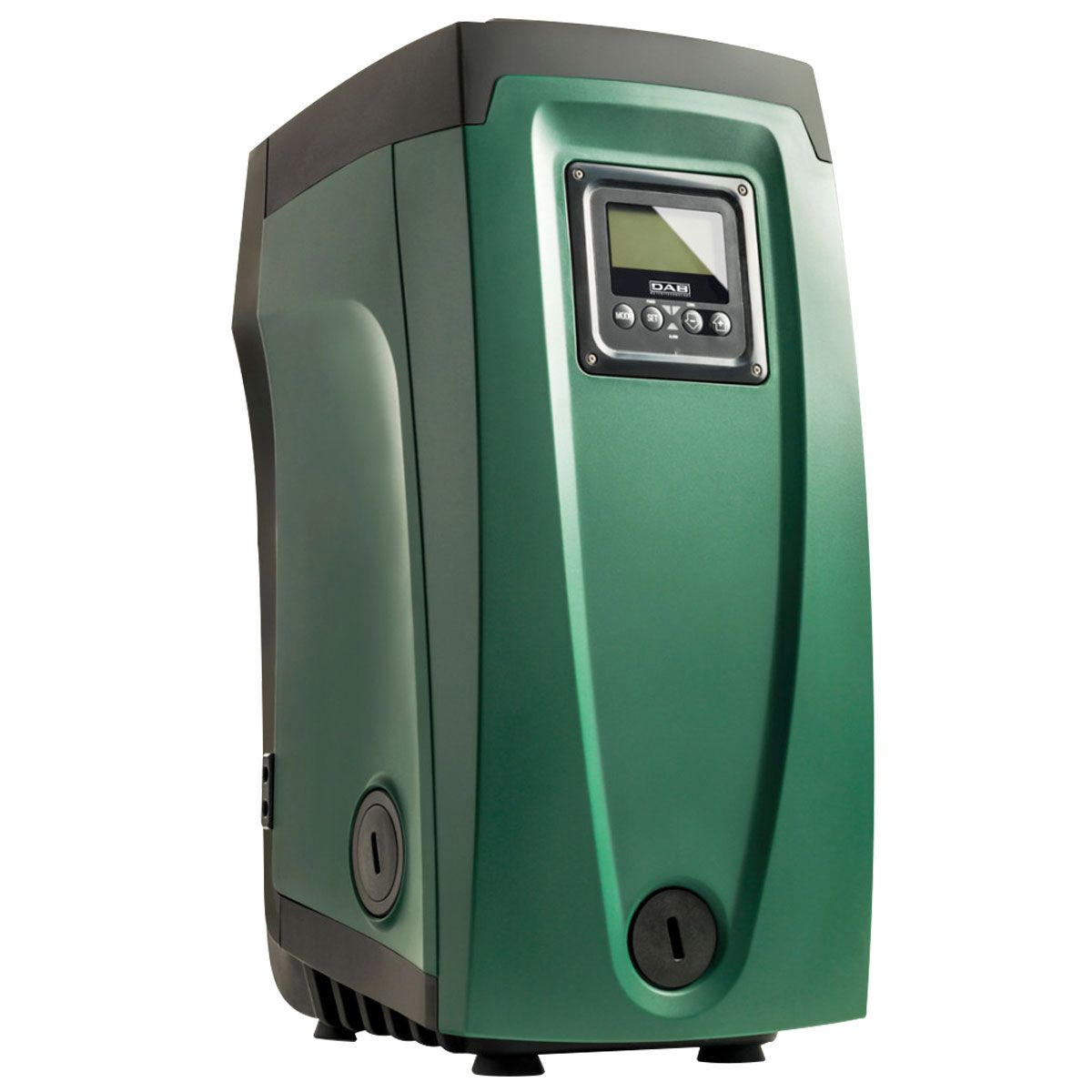

Esybox NPT Electronic Pressurization System 230V:

Features

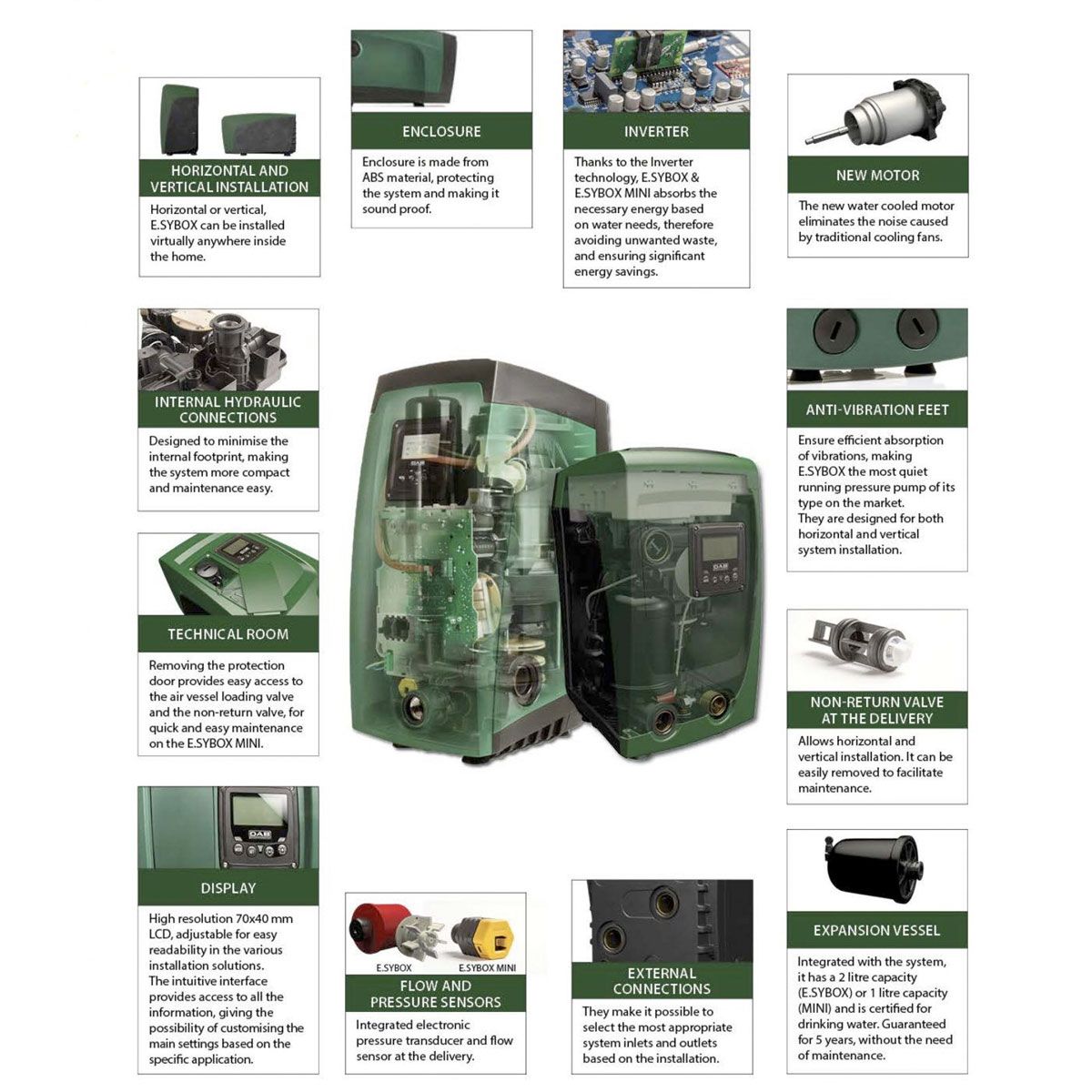

Esybox comprises a self-priming, multi-stage pump with electronic inverter management, pressure and flow sensors, adjustable, high-resolution LCD display and an integrated 0.5 gallon expansion tank. Can be installed either vertically or horizontally, in closed spaces without high level of air exchange. The accessories (esywall, esydock, esytwin, esytank) permit several installation possibilities.

The water-cooled motor, the protective and sound damping ABS hull, the anti-vibration feet and its electronics make this compact product very quiet (45dB under normal use). The wireless system enables the creation of other pressurization groups able to connect with other DAB devices (eg, esylink).

Advantages
Esybox is, first of all, an integrated electronic system equipped with inverter technology; each component has been developed to give maximum performance with minimum effort, bringing innovation to the service of simplicity. All this is enclosed inside a “case” with its typical Italian design.

Benefits
The new variable-speed electronics ensures constant pressure in relation to the flow rate. The systems with inverter technology make less noise compared to the traditional on/off systems because they regulate the motor rpm according to requirements of the system and is equipped with gradual start-up and switch off.

Specifications

• Operating range: capacity up to 32 gpm; head up to 210 ft
• Liquid quality requirements: clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, un-crystallized and chemically neutral
• Liquid temperature range: from 32°F to +95°F for domestic use or from 32°F to +104°C for other uses
• Maximum suction depth: 26 ft
• Maximum ambient temperature: +102°F
• Maximum withstandable pressure: 118 psi (8 bar / 800 kPa)
• Motor protection rating: IPX4
• Insulation class: F
• Installation: Horizontal or vertical fixed position
• Power Supply: 230v50-60Hz

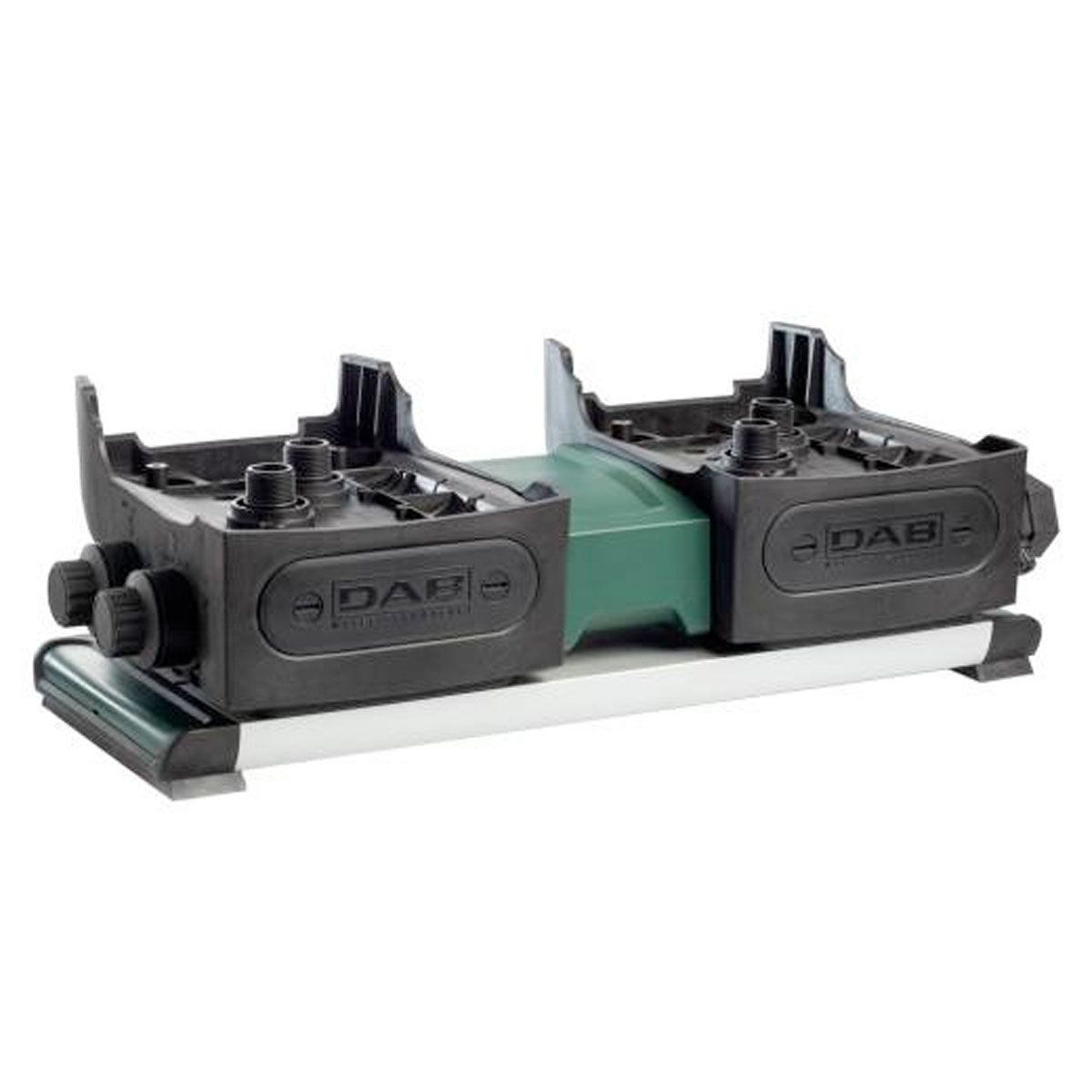

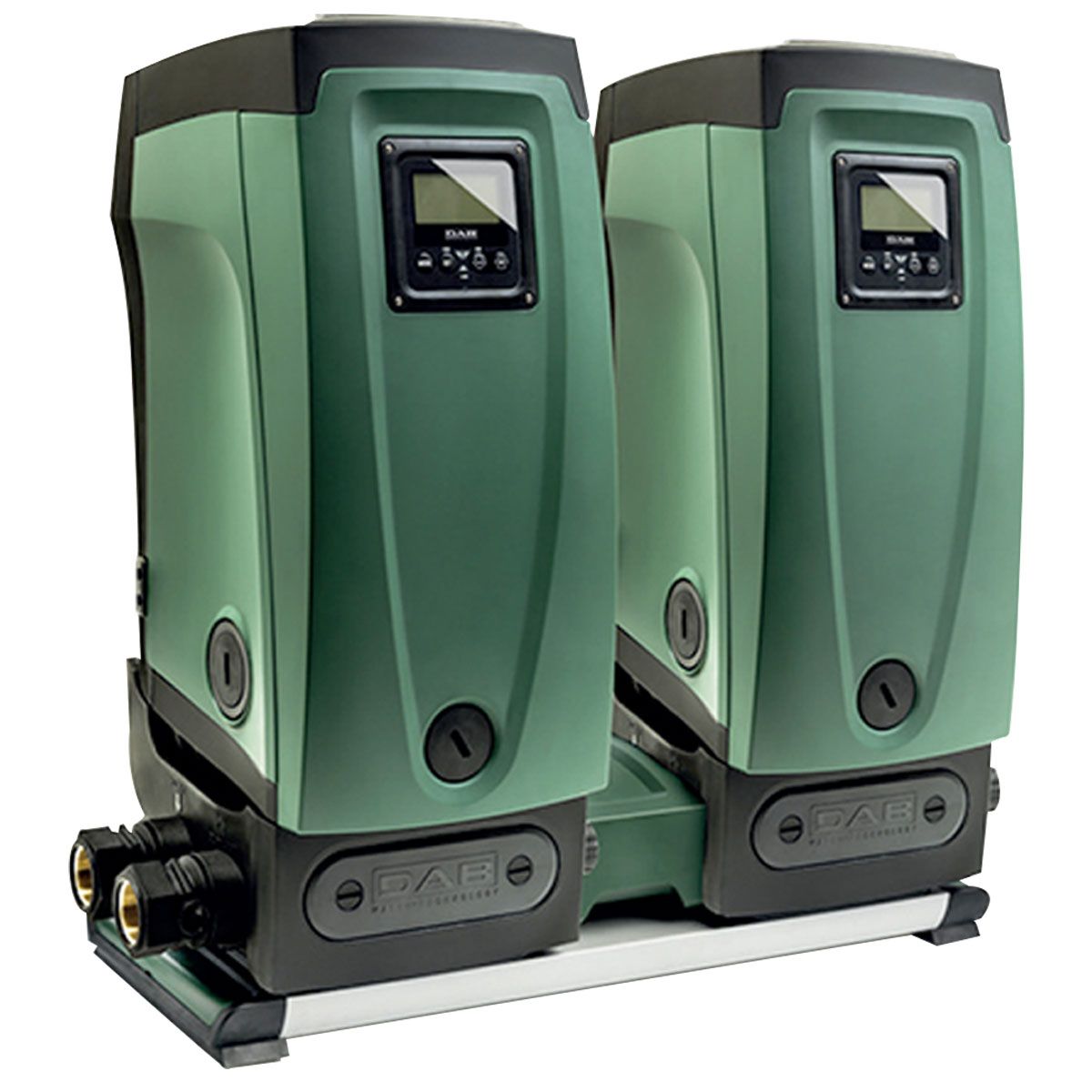

Esytwin Dock is used to be able to mount 2 Esybox's side by side for systems where either a larger flow or a where stand-by pump is required. The suction and discharge 1 1/4" NPT connection can be made at either side of the dock or on the same side to make piping up the dock as easy as possible.

Features

• Increases capacity
• Increases the reliability
• Wireless communication

The Esybox's can communicate with each other without a cable, by means of wireless Communications of up to 4 Esybox's that can talk to each other to allow for easy set-up and duty rotation. The whole pump is mounted in a sound-proof closed ABS housing. Noise = 45 dBA. Thanks to the inverter and synchronous motor Esybox there will be a huge energy saving with no pressure surges and less stress on pipes and fittings.

NOTE: Dock ONLY, Esytwin not included.
