TrolMaster Cable Sets

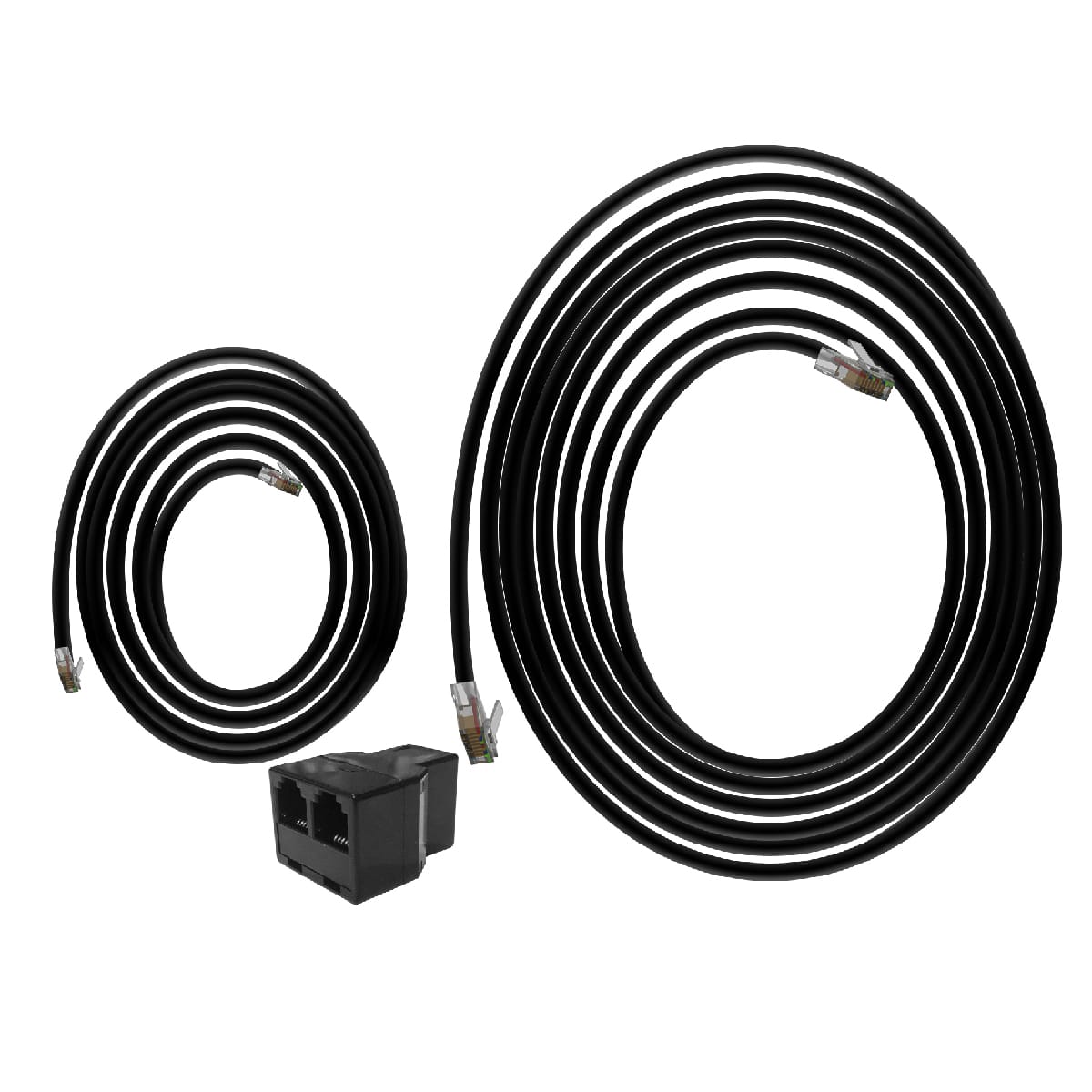

TrolMaster modules and sensors all come complete with a RJ12 16ft cable, Y-splitter and RJ12 4 ft cable to connect to the Hydro-x. When connecting modules that are farther apart, you can use the Extension cable set ECS-1. The ECS-1 comes complete with another 16ft cable, Y-splitter and 4 ft cable.

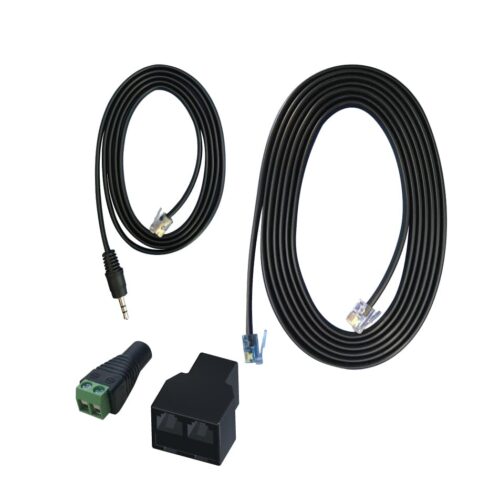

The ECS-2 cable set is designed to connect Hydro-X to most LED drivers with a pigtail wiring. The ECS-2 comes with a 16 ft RJ12 cable, a Y-splitter and a special 4 ft RJ12 / 3.5mm jack cable. The special cable connects to your lighting fixture / LED driver using the two-screw terminal block to connect to loose wires on the LED driver. Simply connect the two wires from your LED driver to the terminal block, each of the lights being controlled are wired in a “daisy-chain” configuration back to the Hydro-X LMA adapter.

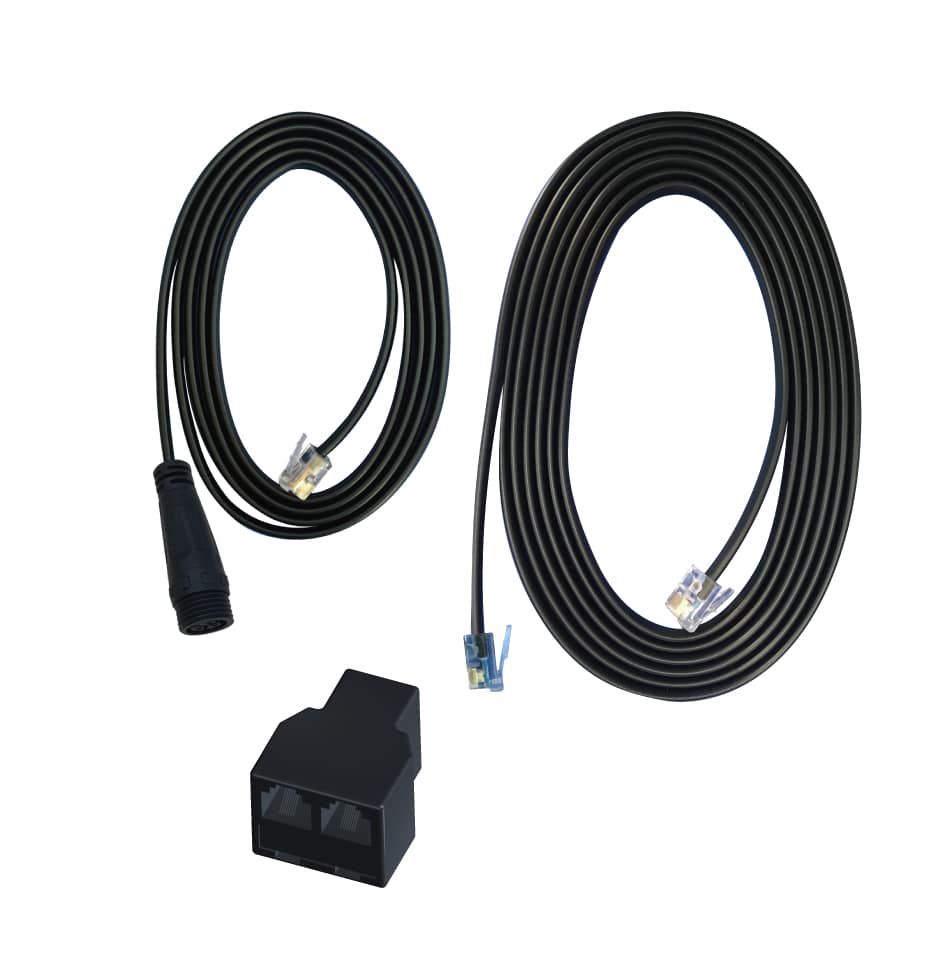

The ECS-3 provides a 5/8” diameter connector for some Fluence brand LED fixtures use Threaded Waterproof Connectors for interconnecting. Like the other ECS kits, the ECS-3 comes with a 16ft RJ12 cable, a T-splitter and a special 4 ft RJ12 / Threaded Waterproof Connector cable.

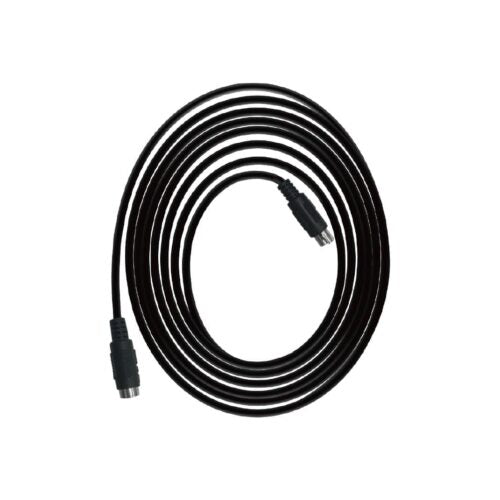

The ECS-4 extension cable is simply a 16 ft extension cable to use with the AMP-2 sensor board. It has a male and female end and can extend the distance between AMP-2 sensor board and the main controller.

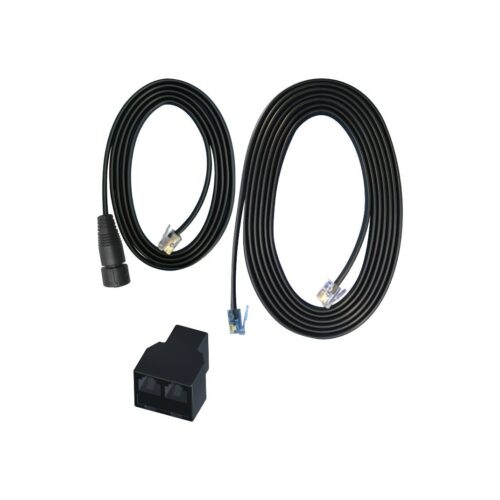

The ECS-5 provides a 5/8” diameter connector for some of Fluence brands newer LED fixtures using PushLock Waterproof Connectors for interconnecting.

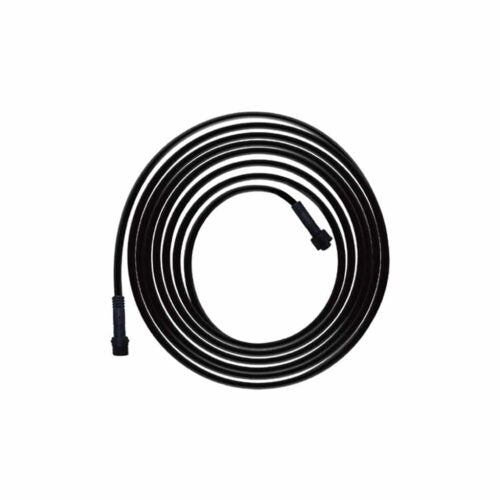

The ECS-6 extension cable is simply a 16 ft extension cable to use with the WCS-1 moisture content sensor. It has a male and female end and can extend the distance between WCS-1 module and the sensor probe.

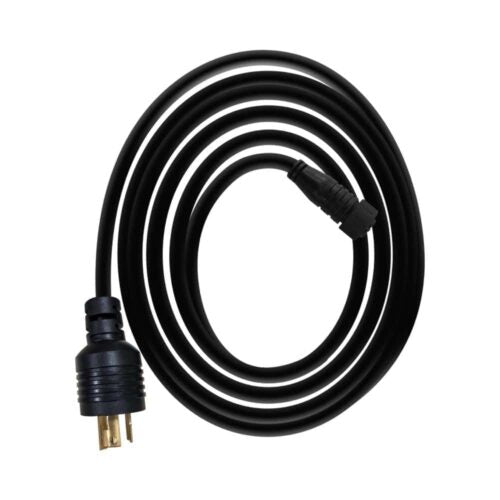

The TG-ECS-7 ThinkGrow 12′ Daisy chain control cable (Replacement daisy chain control cable with waterproof connectors. This replaces the cable that originally comes with every unit) Compatible with all ThinkGrow lights.

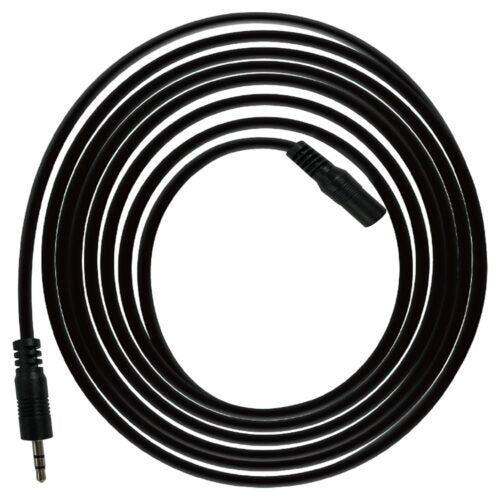

The ECS-8 extension cable is simply a 32 ft extension cable to use with the IR emitter in AC Remote station ARS-1 and Digital Day/Night Remote Controller Beta-1. It has a male and female end and can extend the distance between IR emitter and AC Remote station ARS-1 and Digital Day/Night Remote Controller Beta-1.

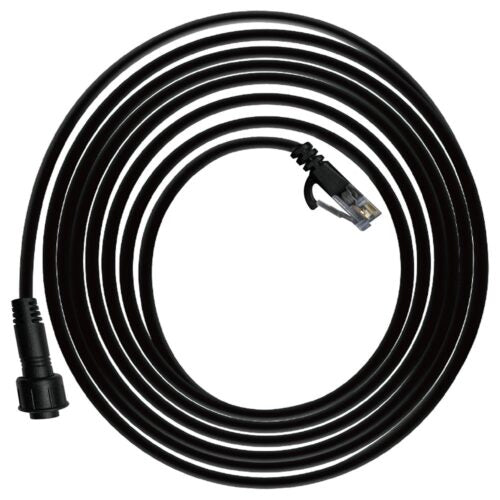

The ECS-9 RJ12 to 4pin connector cable is simply a 12 ft cable to use with Lighting Control Adaptor T (LMA-T) and ThinkGrow LEDs with Threaded Waterproof Connectors for interconnecting.

Most sensors and control modules are connected by using standard RJ12 cable and splitters, making installation as simple as plug-and-play. TrolMaster provides the ECS-500 cable roll package for users to customize their own cables when the standard cables provided are not satisfied their need. Includes:

• 1 x TrolMaster 500ft RJ12 Cable Roll
• 100 x RJ12 Crystal Heads
• 100 x Crystal Head Protectors
