DLI Joule, Horti DE 1000W & UV Series

This fixture is optimized by DLI for rooms with little height and greenhouses. Efficiency and uniformity of the reflector guarantee that more than 95% of the light is transmitted to the plants, either directly or via the reflector.

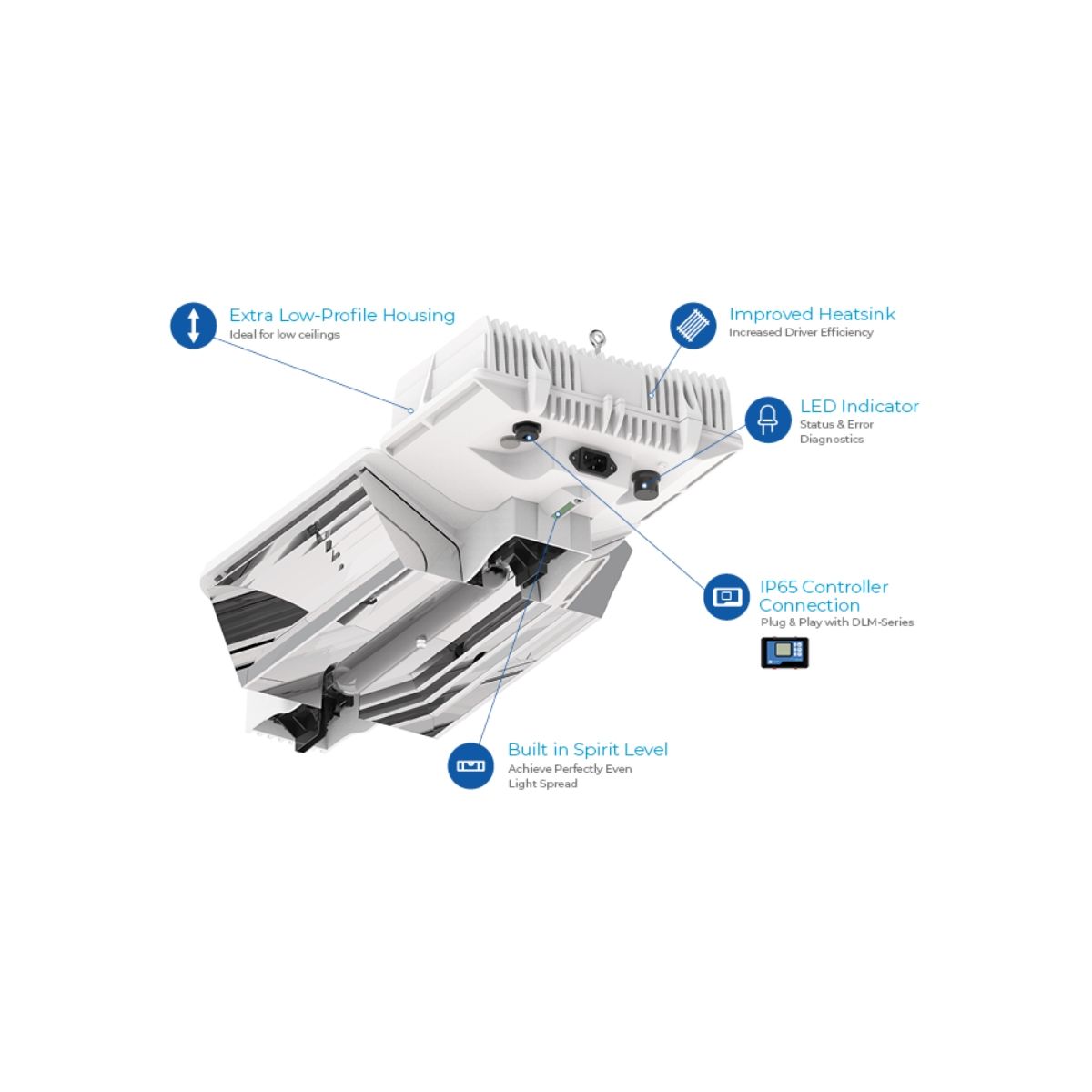

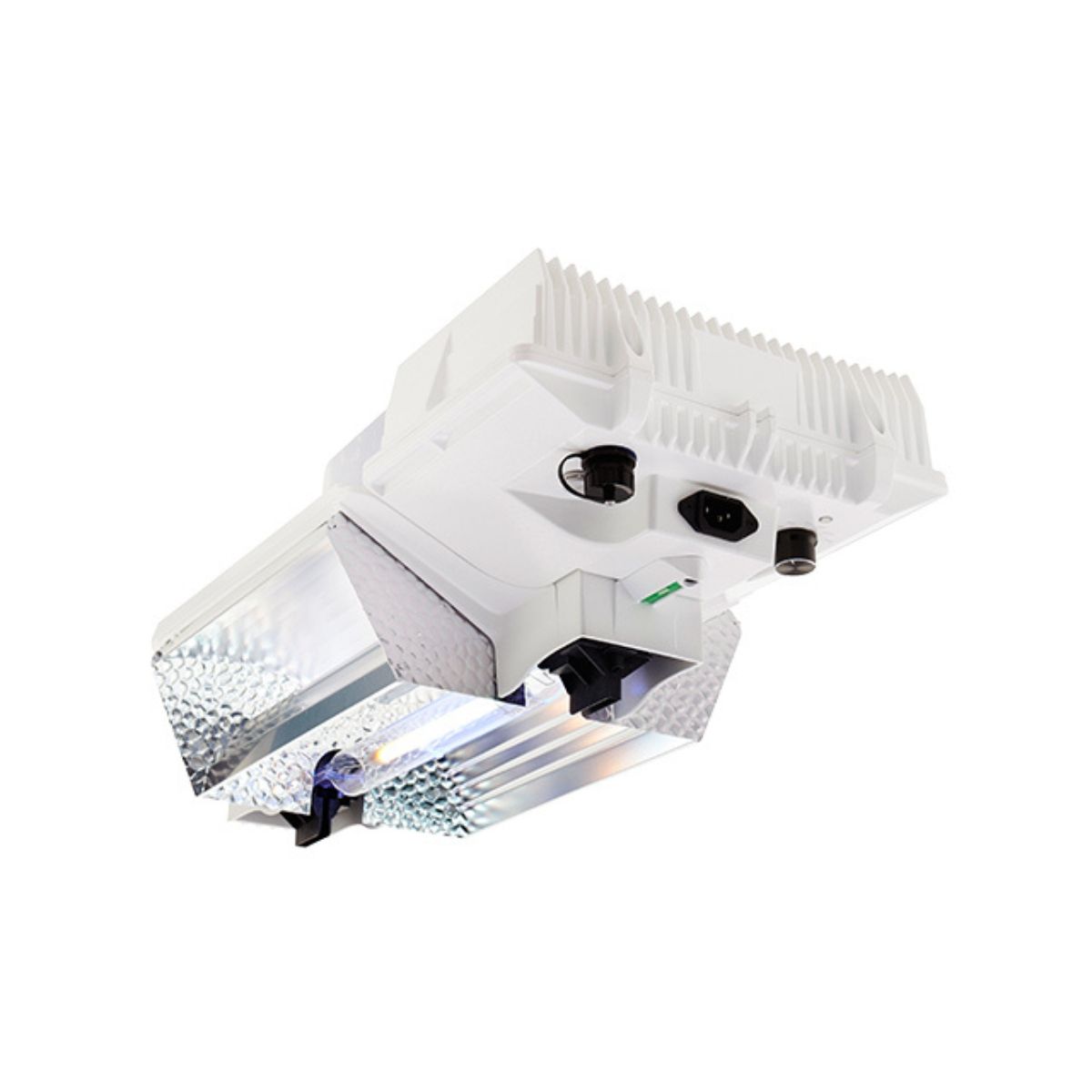

DLI Joule-Serie 1000W DE 208-240V DC

Low-profile housing

Due to the unique position of the housings, this fixture is extremely suitable for low-ceiling rooms where height is a problem. It is also ideal in greenhouses because of less sunlight interception.

Built-inspirit level

This fixture has a built-in spirit level to achieve perfect even light spread across your room or greenhouse.

Superior light spread due to special manufacturing

Efficiency and uniformity have been the main focus in the development of this reflector. Each ray of light coming from the lamp will either be transmitted directly to the plants or will hit the aluminum reflector once to get the highest possible efficiency of >95%.

Technical specifications:

• DLI JOULE-Series 1000W DE-DC
• Output µmol/s: 2100
• Beam Angle: 140° WIDE
• Power: 1000W
• Voltage Range: 208V - 400V
• Efficiency µmol/J: 2.0
• Dimming: 60% - 115%
• IP Rating: IP20
• Product Dimensions: 22.8 x 11.4 x 7.1 inch / 58 x29 x 18 cm
• Product Weight: 11.7 lb / 5.3 kg
• Certifications: CE, CSA, FCC part 18, UL 1598, CB
• Country of Origin: The Netherlands
• Warranty: 3 Years

A low-maintenance fixture that guarantees quality, reliability and a long lifespan: Dutch Lighting Innovations offers a lighting fixture perfectly tailored to the needs of growers. The DLI HORTI-Series 1000W DE DC is an innovative lighting fixture that delivers a competitive edge to boost your yield.

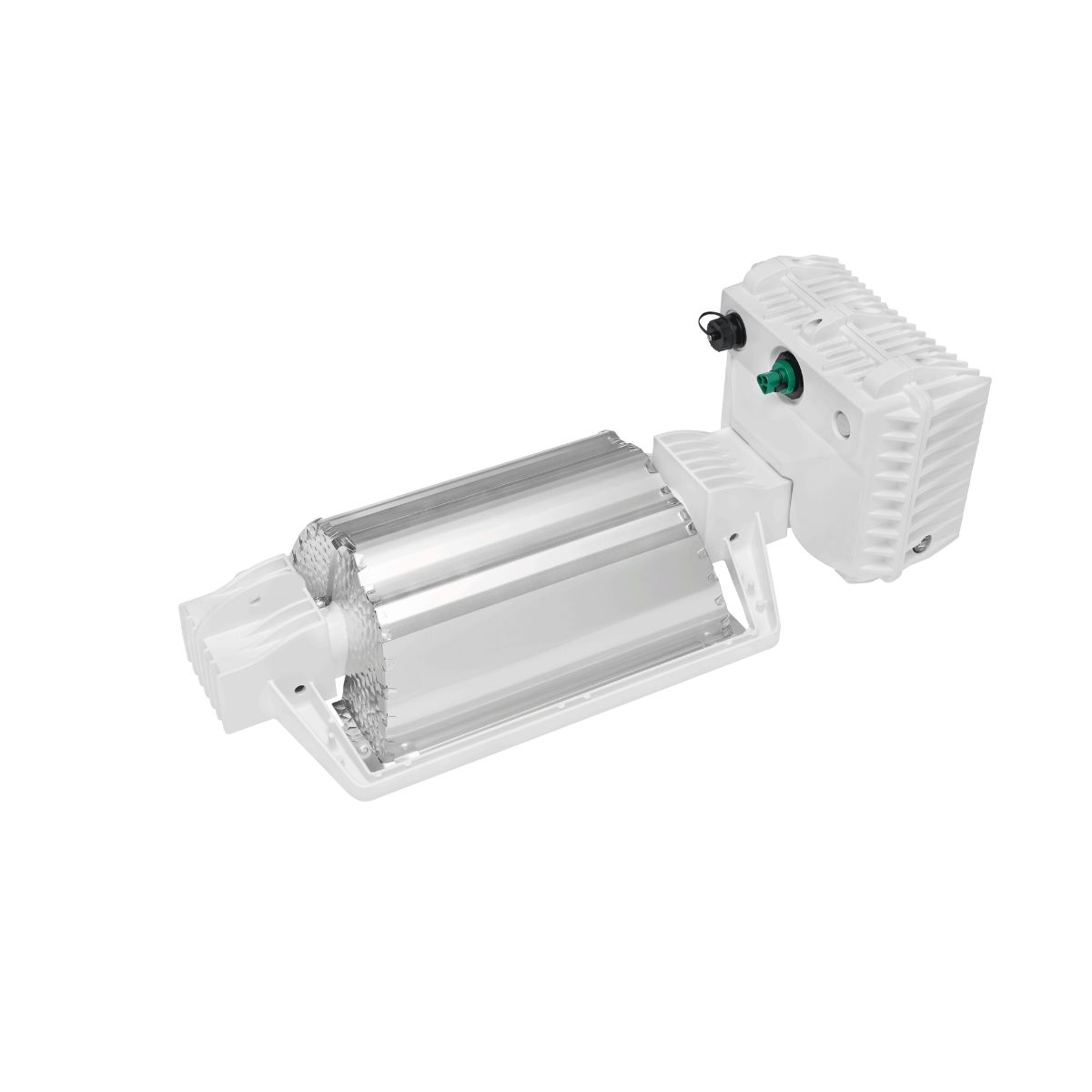

DLI HORTI-Serie 1000W DE 208-240V DC

Compatible with all existing DLI systems

The fixture is fully compatible with the other products in our portfolio. This fixture communicates perfectly with our DLI controller, allowing you to easily replace or extend your existing installation with this new fixture.

Plug & Play Ready to use

The two suspension eyes on the top of this fixture ensure simple installation in every possible situation, using the two screw eyes that come with the fixture. It operates according to our famous plug and play principle: the new fixture is ready to use immediately after following simple installation manual.

Use at height to Increase overall yield

Due to the compact design and low profile of the housing, it is possible to install the fixture as high as possible above the crop. This greater height improves light uniformity on the crops, thereby increasing the overall yield.

Technical specifications:

• DLI HORTI-Series 1000W DE DC
• Output µmol/s: 2200
• Beam Angle: 120° DEEP
• Power: 1000W
• Voltage Range: 277V - 400V
• Efficiency µmol/J: 2.1
• Dimming: N/A
• IP Rating: IP20
• Product Dimensions: 22.4 x 9.8 x 7.7 inch / 57 x 25 x 19.5 cm
• Product Weight: 9.9 lb / 4.5 kg
• Certifications: CE, CSA, UL 1598, FCC part 18
• Country of Origin: The Netherlands
• Warranty: 3 Years

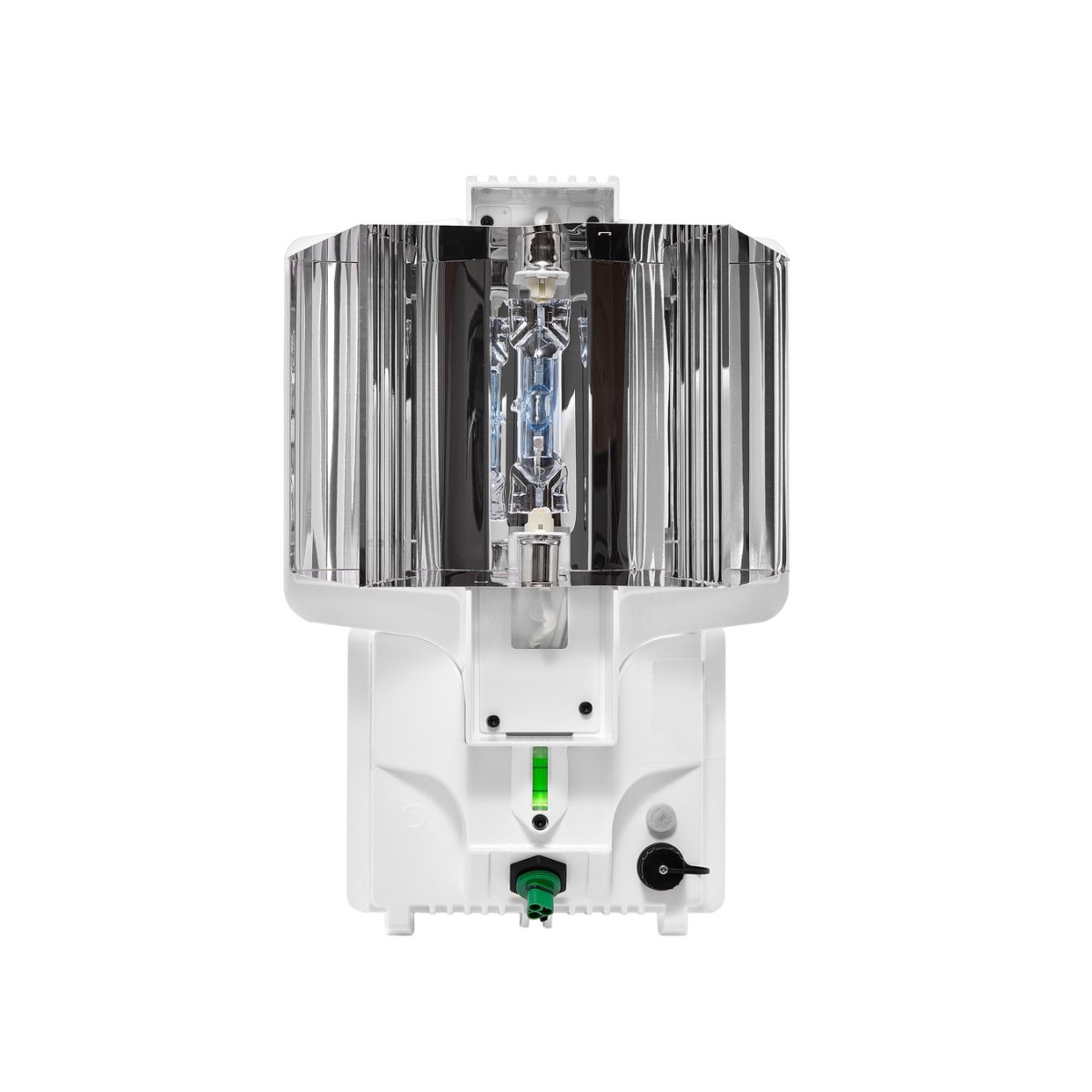

DLI UV-Serie UV 150W DE 208-347V WO/Lamp Cord

One of a kind DLI exclusive

This fixture is one of a kind. It uses the DLI exclusive “Solar Noon®” lamp. Dutch Lighting Innovations is the only grow light manufacturer that produces UV-light fixtures able to recreate all the UV-A and UV-B advantages of outside sunlight, in a controlled environment.

Healthier plants and pest-control

There are specific photoreceptors for UV-B and UV-A that plants use to sense and learn about the environment around them and to regulate internal proceses based on this information. UV exposure at the right dose manifests in healthier, more resilient plants. Stimulation with UV light increases leaf and cell wall thickness and makes plants less susceptible to bugs and mould. This characteristic of UV light lowers the need for insecticides and fungicides and can also assist in the breakdown of residues that remain on surfaces.

Technical specifications:

• DLI CRI-Series UV 150W DE
• Output µmol/s: 160
• Beam Angle: 140°
• Power: 150W
• Voltage Range: 208V - 347V
• Efficiency µmol/J: 1.1
• Dimming: N/A

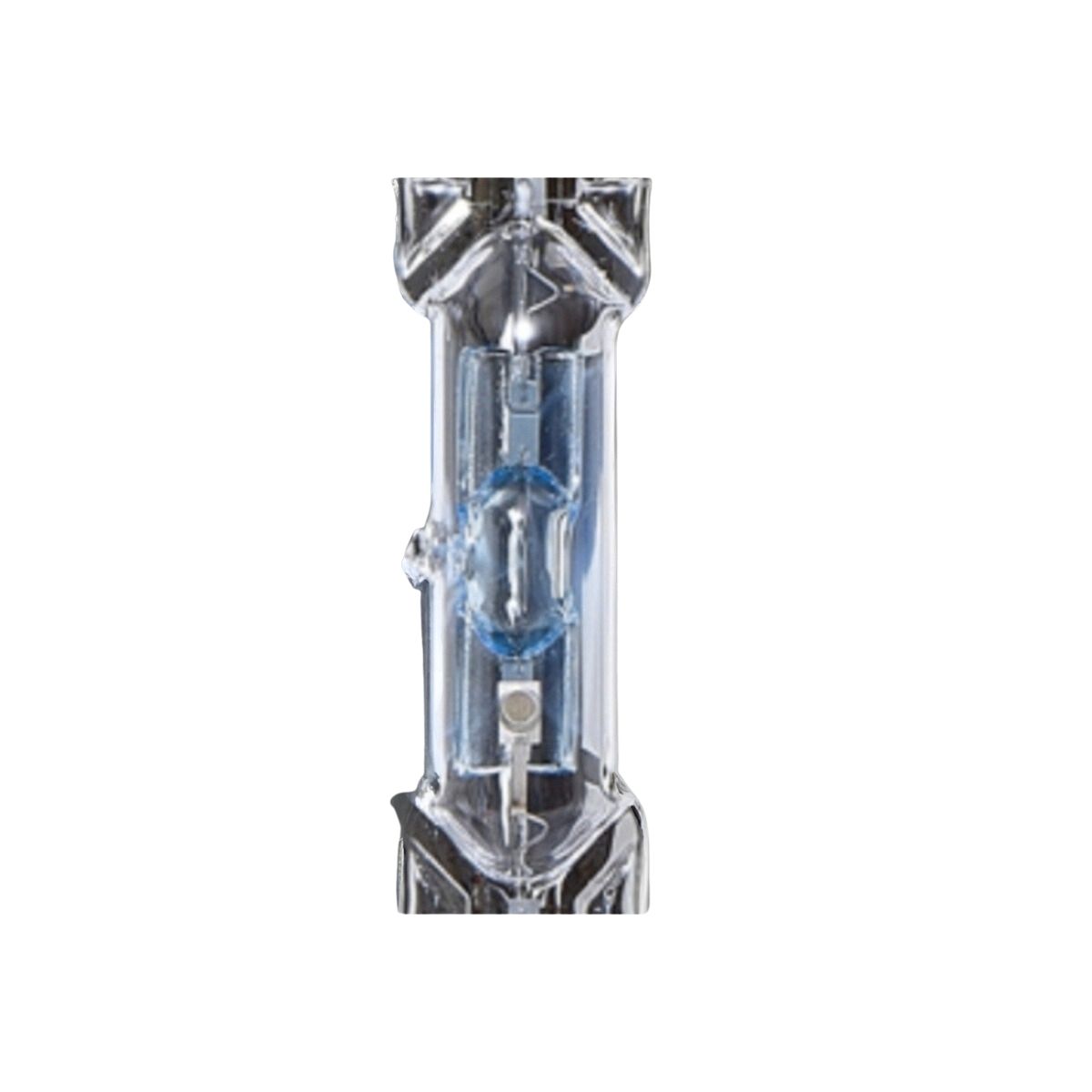

• Relamp with: Solar Noon®
• Product Dimensions: 16.9 x 11.4 x 7.1 inch / 43 x 29 x 18 cm
• Product Weight: 10.6 lb / 4.8 kg
• Certifications: CE, CSA, UL 1598, FCC part 18
• Country of Origin: The Netherlands
• Warranty: 3 Years (lamp and reflector not included)

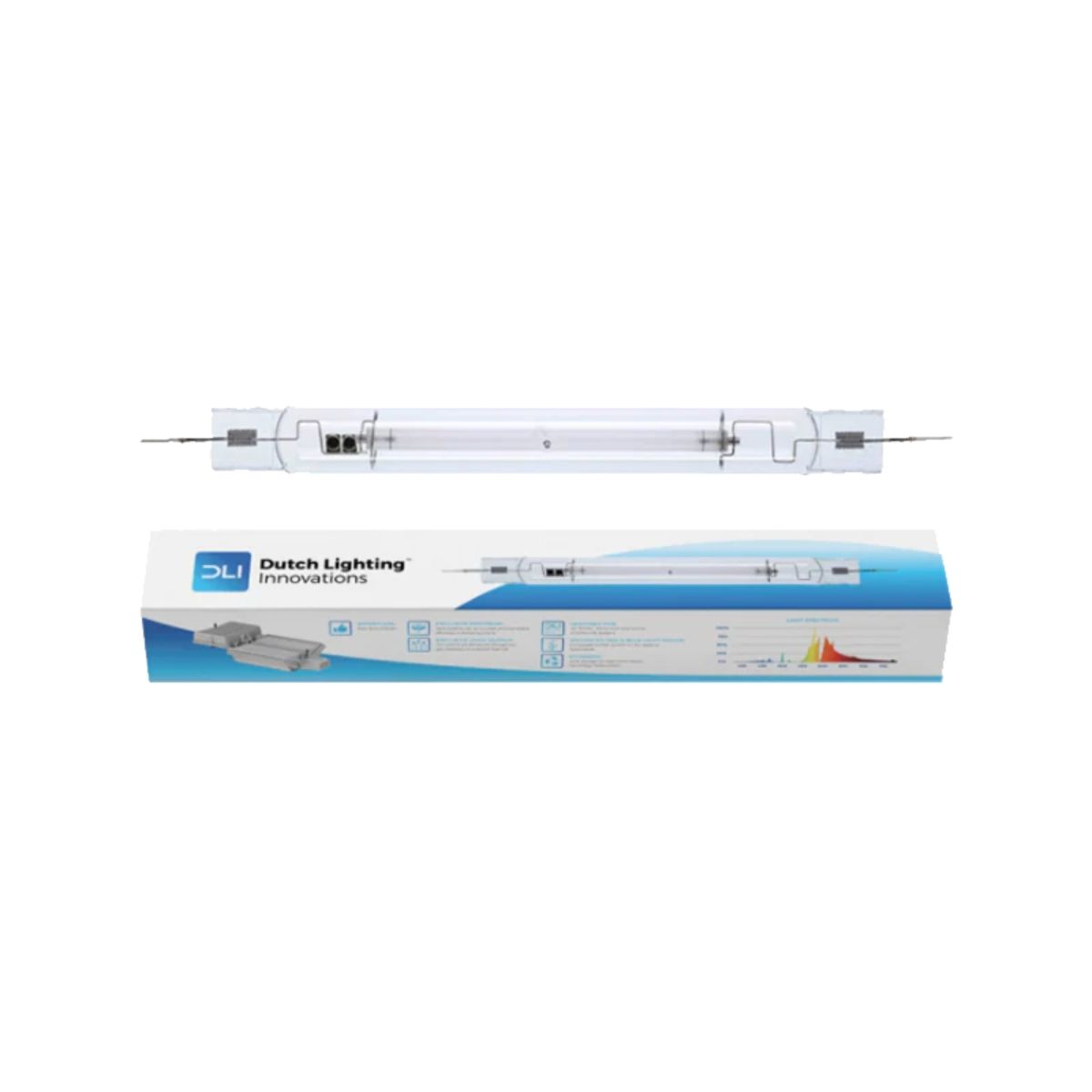

DLI Horticulture Plus 1000W DE HPS Lamp

• Exclusive Spectrum: Optimized by DLI to increase photosynthesis efficiency.
• Exclusive μMOL Output: Enhanced through gas chemistry to maintain high life.
• Designed for DLI JOULE – Series and most brands of 1000w DE Systems.
• Economic Long average life, high μMOL output, low energy consumption.

ADDITIONAL INFORMATION

Wattage: 1020W

Lamp Voltage: 230V

Photosynthetic Photon Flux (PPF): 2100µmol/s

Photon Flux Efficacy: 2,06µmol/s/W

Length: 394mm

Cap/Base: K12x30s
