Wachsen Under Canopy Light

High-performance under canopy light with 120W output and 2.6 μmol/J efficacy. Featuring wide light coverage, 0–10V dimming, multiple mounting options, and IP65 waterproof rating—ideal for commercial cultivation.

Optimized supplemental lighting for commercial cultivation

Enhance your crop yields and under-canopy growth with the Wachsen Under Canopy Light, a professional-grade supplemental light engineered for efficiency, flexibility, and uniformity. Designed to mount seamlessly under plant canopies, this fixture provides consistent PAR output with low energy consumption and long-lasting performance.

Key Features:

High-Efficiency Output

Delivers 312 μmol/s PPF at 2.6 μmol/J efficacy for optimal light penetration below the canopy.

Energy Efficient & Long-Lasting

120W input with passive cooling—no fans, no noise. Q90 > 36,000 hours lifetime.

Flexible Installation

Can be bracket- or hanging-mounted depending on your environment. Compatible with adjustable stand WUC-AS-8/15.

0–10V Dimming Control

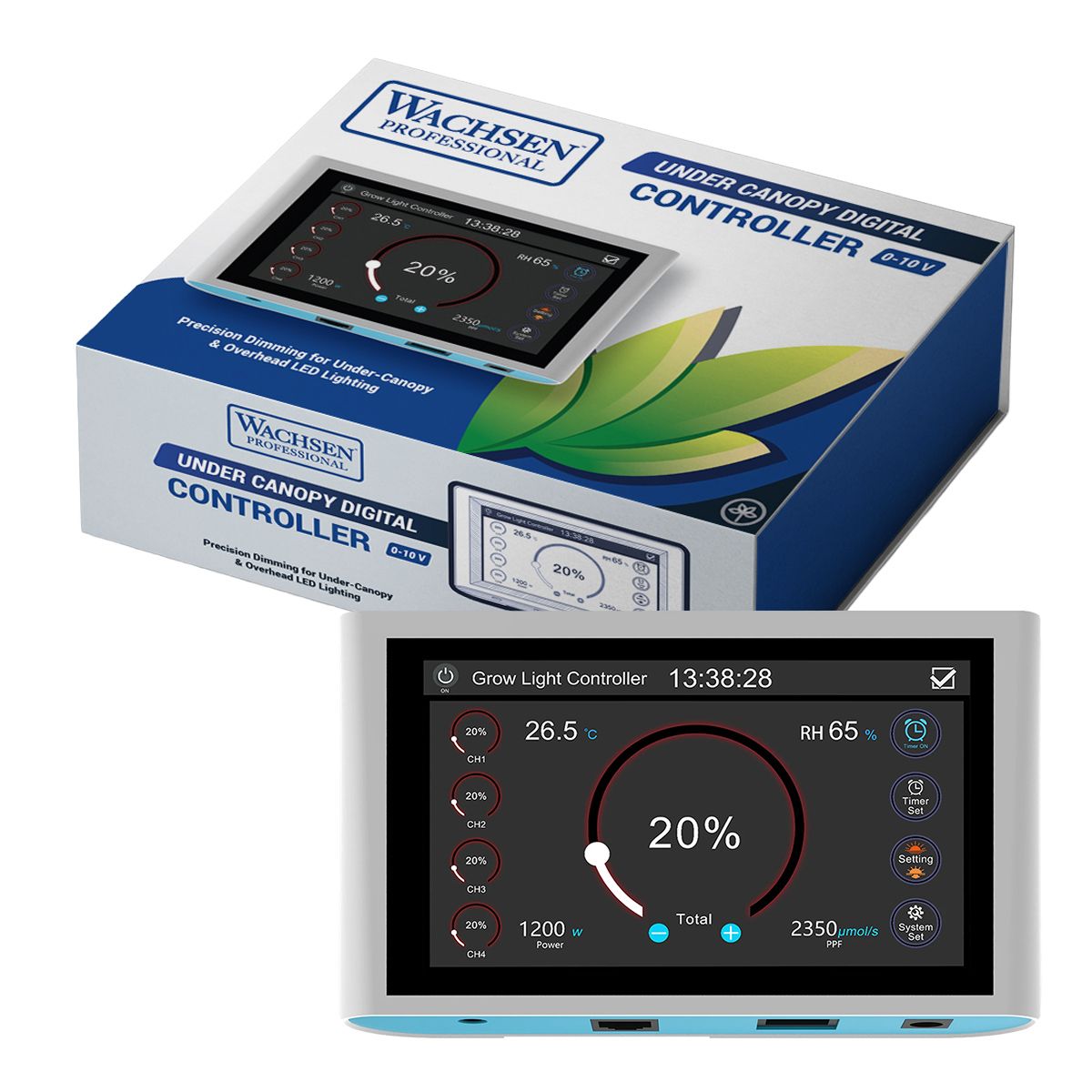

Easily integrate dimming with Wachsen 0–10V dimmer or any compatible controller for tailored light intensity.

Daisy-Chain Ready

RJ12 port and linkable power input allow up to:

-9 units @ 120V

-17 units @ 230V

-18 units @ 240V

-20 units @ 277V

Rugged and Grow-Ready

Waterproof IP65-rated and certified (DLC, ETL, CE, RoHS) for use in demanding wet environments.

Optimized Full-Spectrum

Optimized full-spectrum output designed for uniform canopy penetration and enhanced light absorption across key photosynthetically active wavelengths.

Specifications:

Power: 120W

Input Voltage: 120–277V

Dimming: 0–10V

Beam Angle: 120°

Heat Load: 410 BTU/hr;

Spectrum: Full-Spectrum

Certifications: DLC / ETL / CE / RoHS

Dimensions: 1330 × 61 × 73 mm

Weight: 15.1 lb

Warranty: 5-Year*

*Pro-rated warranty. Coverage decreases over time. See full terms for details.
